Product behaviour
Viscosity, foam, particles, temperature and chemical compatibility.
Selection and comparison guides
Liquid filling machine viscosity guide for thin and thick products.
Viscosity changes how a product flows, how it cuts off at the nozzle and which pump or piston method is suitable. This guide explains how to describe viscosity when asking for a filling machine quote.
Buyer intent guide
What to confirm before you choose a machine.
The best choice is rarely decided by one factor. A method that works well for a thin chemical may not suit a viscous food product, and a machine that is fast on one bottle format may slow down when changeovers are frequent.
Container details
Bottle, jar, pail or jerrycan size, neck opening, stability and closure.
Fill target
Fill volume or weight, accuracy tolerance and required bottles or packs per minute.
Automation level
Manual loading, semi-automatic operation, compact automation or full inline production.
Specification notes
How Lancing narrows the recommendation.
These points help make an enquiry more accurate and reduce the risk of selecting the wrong filling principle.
Start with the product, not the machine.
The same bottle filling machine can perform very differently when the liquid changes. A water-thin cleaner, a foaming detergent, a viscous sauce, a fragrance oil and a corrosive chemical each create different challenges. Product behaviour drives pump selection, nozzle design, materials and speed.
For a strong recommendation, include the product type, approximate viscosity, whether it foams or strings, whether it contains particles and whether it needs heating, mixing or special materials.
Match output to the full process.
Filling speed should be balanced with capping, labelling, operator loading and packing. A fast filler does not improve the line if bottles cannot be presented, capped or labelled at the same rate.
For growing production, Lancing can discuss a sensible route from semi-automatic equipment to compact automation or a fully automatic filling line.
Relevant machinery
Machines and ranges to compare.
These product pages are useful starting points when discussing liquid filling machine viscosity guide.

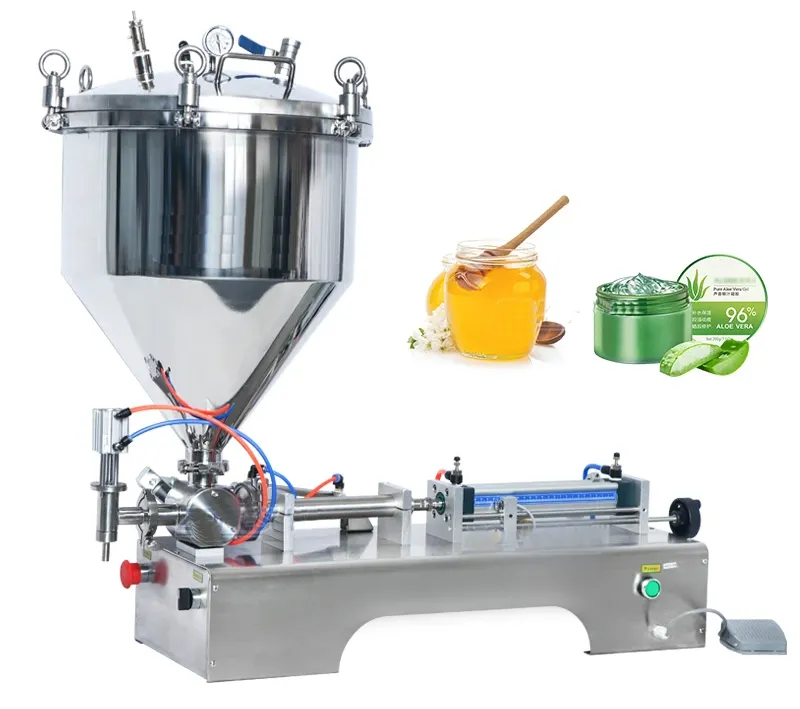

Automatic Paste Filling Machine
Relevant Lancing machinery to discuss when specifying liquid filling machine viscosity guide projects.
View productPaste Filling Machinery
Relevant Lancing machinery to discuss when specifying liquid filling machine viscosity guide projects.
View productSemi Automatic Paste Filling Machine
Relevant Lancing machinery to discuss when specifying liquid filling machine viscosity guide projects.
View productAutomatic Volumetric Filling Machine
Relevant Lancing machinery to discuss when specifying liquid filling machine viscosity guide projects.
View productFAQs
Common questions before requesting a quote.
What information should I send for liquid filling machine viscosity guide?
Send the product name, viscosity or sample details, fill volume, container dimensions, closure type, required output, cleaning needs and any safety or material compatibility requirements.
Can Lancing supply semi-automatic and automatic options for liquid filling machine viscosity guide?
Yes. Lancing can discuss semi-automatic, compact and fully automatic configurations depending on output target, product behaviour, budget and future production plans.
How do I know which filling method is right for liquid filling machine viscosity guide?
The correct method depends on viscosity, foaming, particles, fill range, container type, accuracy requirement and production speed. A short specification review is usually the safest way to narrow the options.
Need a recommendation?
Send the product, container and output target.
Lancing will recommend a suitable semi-automatic, compact or fully automatic filling solution.
Liquid behaviour under production conditions
Use a viscosity range and process description, not a single room-temperature number.
Viscosity describes resistance to flow, but one figure rarely captures everything a filler experiences. Many products change markedly with temperature. Some become thinner under shear, some thicken, and some recover slowly after pumping or mixing. Suspended particles, trapped air and product age can also affect suction, valves, nozzle shut-off and the time needed for a stable fill.
Record how the product is made, stored and delivered to the filler. A warm batch pumped from a vessel may behave differently from cold product drawn from a small hopper after standing. The machine trial should reproduce the normal and worst credible conditions, with product temperature and preparation noted for every result.
Temperature profile
Measure or obtain viscosity at the temperatures expected at start-up, steady production and seasonal extremes. Also record density where weight and volume are compared. Heating can improve flow but may affect product quality or cleaning and should not be assumed without approval.
Shear and recovery
Pumps, mixers and narrow valves can change the apparent viscosity of non-Newtonian products. Describe whether the product is shear-thinning, shear-thickening or time-dependent and whether a representative sample must be remixed before a trial.
Particles and entrained air
A viscosity value does not describe pieces, fibres, crystals or bubbles. Record largest particle, typical concentration, settling tendency and aeration. The entire passage from source to nozzle must accommodate the real product distribution.
Specification and trial evidence
Liquid-property record for a filling trial.
This table can be completed from first-party product data and observations; unknown items should be tested or confirmed by the product owner.
| Selection point | What to define or test | Why it matters |
|---|---|---|
| Product identity | Formula or grade, batch and age | Prevents results from different products being compared as if equivalent. |
| Temperature | At source, pump and nozzle during each test | Links viscosity, density and flow behaviour to a recorded condition. |
| Viscosity method | Value, units, instrument, spindle or method and shear condition | Makes the number reproducible and interpretable. |
| Flow behaviour | Newtonian, shear-thinning, shear-thickening, thixotropic or unknown | Guides pump and profile trials. |
| Solids | Largest and typical size, shape, hardness, concentration and settling | Defines valve, hose and nozzle passage requirements. |
| Air and foam | Entrained air, surface foam, vortexing and settling time | Explains dose and level variation. |
| Cleaning state | What happens on cooling, drying, dilution or contact with cleaning agent | Controls drain, flush and dismantling requirements. |
Buyer questions
Questions to resolve before the specification is fixed.
Why does viscosity change filling speed?
Higher resistance to flow can increase suction and discharge time and may require larger passages or different acceleration. The effect depends on the pump, hose, valve, nozzle and product feed.
Can one filler cover a wide viscosity range?
Possibly, but each end of the range needs verification. A setup optimised for a thin liquid may drip or splash, while a setup for thick product may be unnecessarily slow or fail to prime with another product.
What is shear-thinning?
It describes a product whose apparent viscosity falls when shear is applied. The product may flow readily through a pump but recover thickness in the container, so preparation and measurement conditions matter.
Why are particles separate from viscosity?
Particles can block or damage valves and nozzles even when the surrounding liquid is thin. Passage size and valve action must be checked against the real largest particles and concentration.
How does air affect fill accuracy?
Compressible air pockets change the amount of liquid in a metered volume and can create foam or delayed settling. Product preparation, suction connections and source level should be controlled.
What sample should be sent?
Send a representative batch in sufficient quantity for priming, repeated fills and cleaning observations, with temperature and handling instructions. Include particles and do not pre-filter unless that is the production process.
