Product behaviour
Viscosity, foam, particles, temperature and chemical compatibility.
Selection and comparison guides
Filling machine accuracy: how to specify repeatable fills.
Accuracy depends on the dosing principle, product consistency, calibration, container tolerance and operator process. High-value products often need a different approach from low-cost bulk liquids.
Buyer intent guide
What to confirm before you choose a machine.
The best choice is rarely decided by one factor. A method that works well for a thin chemical may not suit a viscous food product, and a machine that is fast on one bottle format may slow down when changeovers are frequent.
Container details
Bottle, jar, pail or jerrycan size, neck opening, stability and closure.
Fill target
Fill volume or weight, accuracy tolerance and required bottles or packs per minute.
Automation level
Manual loading, semi-automatic operation, compact automation or full inline production.
Specification notes
How Lancing narrows the recommendation.
These points help make an enquiry more accurate and reduce the risk of selecting the wrong filling principle.
Start with the product, not the machine.
The same bottle filling machine can perform very differently when the liquid changes. A water-thin cleaner, a foaming detergent, a viscous sauce, a fragrance oil and a corrosive chemical each create different challenges. Product behaviour drives pump selection, nozzle design, materials and speed.
For a strong recommendation, include the product type, approximate viscosity, whether it foams or strings, whether it contains particles and whether it needs heating, mixing or special materials.
Match output to the full process.
Filling speed should be balanced with capping, labelling, operator loading and packing. A fast filler does not improve the line if bottles cannot be presented, capped or labelled at the same rate.
For growing production, Lancing can discuss a sensible route from semi-automatic equipment to compact automation or a fully automatic filling line.
Relevant machinery
Machines and ranges to compare.
These product pages are useful starting points when discussing filling machine accuracy.

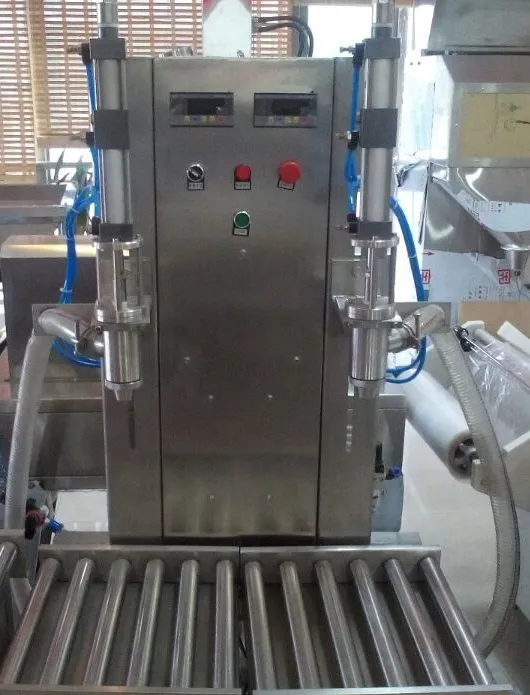

Semi Automatic Bucket Filling Machine
Relevant Lancing machinery to discuss when specifying filling machine accuracy projects.
View productLiquid Filling Machinery
Relevant Lancing machinery to discuss when specifying filling machine accuracy projects.
View productAutomatic Volumetric Filling Machine
Relevant Lancing machinery to discuss when specifying filling machine accuracy projects.
View productRoto Lube Filling Machine
Relevant Lancing machinery to discuss when specifying filling machine accuracy projects.
View productFAQs
Common questions before requesting a quote.
What information should I send for filling machine accuracy?
Send the product name, viscosity or sample details, fill volume, container dimensions, closure type, required output, cleaning needs and any safety or material compatibility requirements.
Can Lancing supply semi-automatic and automatic options for filling machine accuracy?
Yes. Lancing can discuss semi-automatic, compact and fully automatic configurations depending on output target, product behaviour, budget and future production plans.
How do I know which filling method is right for filling machine accuracy?
The correct method depends on viscosity, foaming, particles, fill range, container type, accuracy requirement and production speed. A short specification review is usually the safest way to narrow the options.
Related guides
More ways to improve the specification.
Need a recommendation?
Send the product, container and output target.
Lancing will recommend a suitable semi-automatic, compact or fully automatic filling solution.
Measure the process, not a headline percentage
Define target, repeatability and test uncertainty before quoting an accuracy result.
Filling quality has at least two components. Bias is the difference between the average result and the intended target; repeatability is the spread of individual fills around that average. A process can be tightly grouped but off target, or centred on target with excessive variation. Calibration corrects bias, while repeatability problems require investigation of product, feed, metering, nozzle or measurement conditions.
The test method can be a significant source of apparent variation. Container tare, scale resolution, vibration, evaporation, density conversion and sample handling must be controlled. For a volumetric requirement checked by weight, use a verified density at the relevant product temperature and record the conversion rather than assuming one millilitre always equals one gram.
Target and tolerance
State whether the required quantity is net mass, volume or visible level, and define any permitted lower and upper limits. Do not mix commercial, legal, customer and internal process targets without identifying which criterion controls acceptance.
Measurement system
Use an instrument with suitable resolution and a current calibration status. Control tare, drafts, vibration and product loss between filling and measurement. Record the operator and method when manual technique can affect the result.
Sampling plan
Agree the number of fills, which heads are sampled, warm-up, start-up and restart checks, and whether data are collected consecutively. A few selected good packs are not a representative acceptance sample.
Specification and trial evidence
Minimum fields for a traceable fill-result table.
The final calculation may be simple, but the conditions behind each value should be recoverable.
| Selection point | What to define or test | Why it matters |
|---|---|---|
| Target | Required net mass or volume and permitted limits | Defines the pass criterion. |
| Machine identity | Model, serial or build reference, recipe and filling head | Links results to the tested configuration. |
| Product condition | Batch, temperature, density where used and source level | Explains changes in flow and conversion. |
| Container tare | Individual tare, average tare or pre-tared method | Separates pack variation from liquid variation. |
| Instrument | Scale or volume device, resolution and calibration status | Shows measurement capability. |
| Sample data | Every individual result, not only average or range | Allows bias, spread and outliers to be reviewed. |
| Operating state | Prime, warm-up, steady run, restart or end of batch | Shows whether performance changes through the production cycle. |
Buyer questions
Questions to resolve before the specification is fixed.
What is filling accuracy?
It is closeness of the delivered quantity to the defined target under stated conditions. A useful report also shows repeatability, sample size and measurement method.
What is repeatability?
It is the closeness of repeated fills to one another when the process conditions are kept the same. It does not by itself show whether the average is on target.
How many samples are needed?
The number should be agreed according to the application, heads, risks and acceptance method. It must be sufficient to represent normal production and should not consist only of hand-picked fills.
Why weigh a volumetric fill?
Scales can offer a convenient test method, but a volume result requires density conversion. Density changes with product and temperature, so the value and method must be recorded.
Can container tare affect the result?
Yes. If net content is calculated from gross weight using an assumed tare, bottle or jar weight variation can appear as fill variation. Individual tare or a justified sampling method may be needed.
What should happen after adjustment?
Repeat the agreed sample under the same conditions and retain both the settings and results. Check all heads and relevant operating states rather than confirming only one fill.
